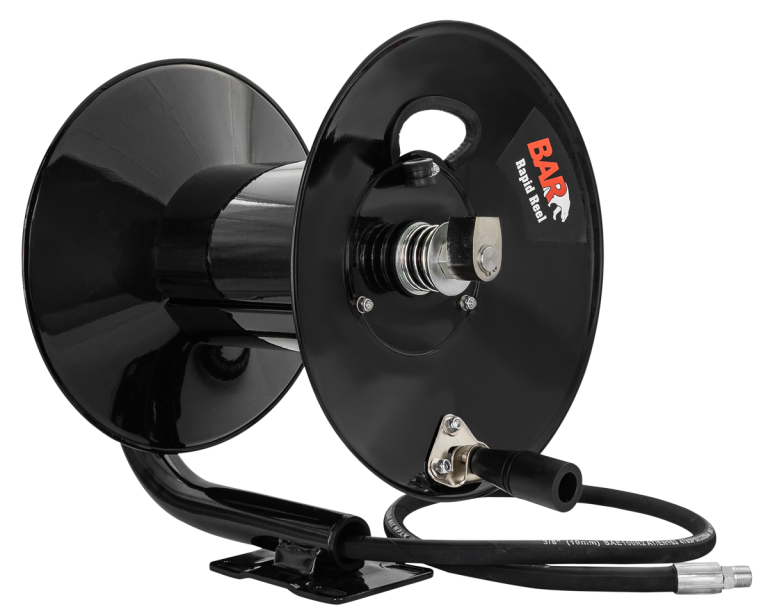

Hose Reel – Crank – BAR

Description

Description from NWC – Made by washers, for washers

A great reel to use for Waterfed window cleaning hose. Compact, holds over 100m of delivery tube (10-12mm tube)

We use these for the delivery hose on waterfed window/solar cleaning systems on fitouts inc our ultimate exterior cleaning skids.

For pressure hose especially when mounted to a vehicle, 125 85.402.100 is a bit better/stronger.

Description from Manufacturer:

Hose Reel – Crank – BAR
BAR Crank Reel for Pressure Cleaners
Designed to partner with your Pressure cleaner on a frame or truck bed
BAR reels extend hose life by preventing storage & transport damage
Locking Pin fitted to prevent recoil (except. 23m)
Swivel in stainless with Mosmatic option
Mounting Plate Specs: 150mm x 10mm (plate 5.2mm thick)
HOSE NOT INCLUDED
Specifications
Capacity: 50 m of 3/8” Hose
Whip Hose: 1.2 m
Max Pressure: 5,000 PSI
Inlet Hose: 3/8” M
Outlet Swivel: 3/8” F
Material: Steel
Arm: Fixed
Weight: 7 kg
Dimensions: 17”x18”x13.5”
